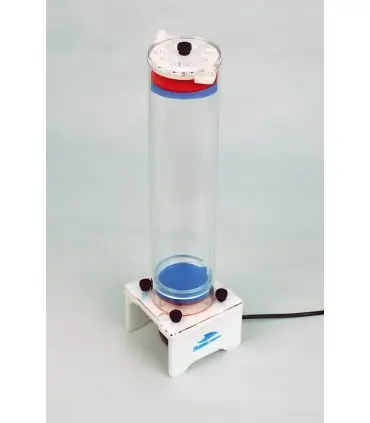

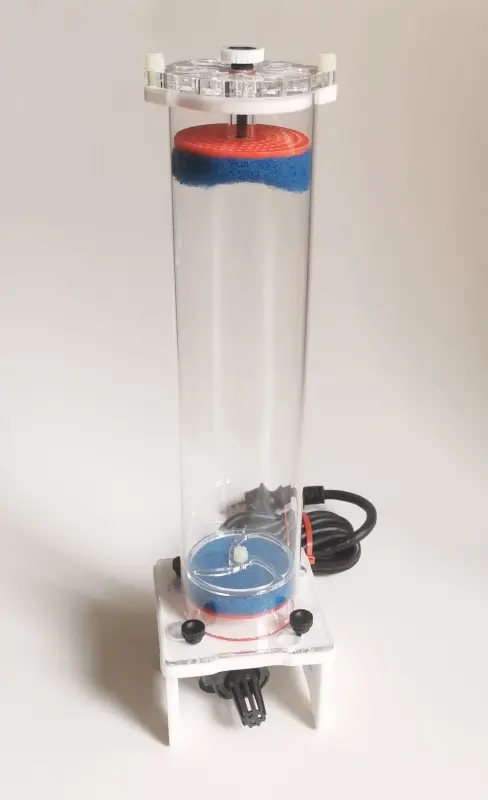

Mini 80 WP

Description:

The Bubble Magus Mini 80 WP is a compact and efficient internal media reactor designed for both freshwater and marine aquariums. Equipped with a WP600 pump, this reactor ensures optimal flow through various filter media, enhancing the removal of impurities and promoting a healthier aquatic environment. Its space-saving design makes it ideal for nano and medium-sized tanks.

Key Features:

• Model: Mini 80 WP

• Pump: WP600

• Power Consumption: 8.5W

• Voltage: 110V / 220V

• Internal Volume: 500ml

• Footprint: Approximately 5" x 4.5" x 17.25"

• Media Compatibility: Suitable for activated carbon, phosphate removers, bio pellets, and other filtration media

• Design: Internal fluidizing reactor with optional sponge inserts for versatile media use

Technical Specifications:

• Flow Rate: Approximately 680 L/h

• Dimensions: 115mm x 115mm x 435mm

• Inlet/Outlet: 1/2" barb fittings

• Construction: Durable acrylic body with a clear chamber for easy media monitoring

Installation & Maintenance:

1. Installation:

   • Place the reactor inside the sump or aquarium, ensuring it's fully submerged.

   • Connect the WP600 pump to the reactor's base.

   • Attach the inlet and outlet hoses to the respective barb fittings.

   • Fill the chamber with the desired filter media, using the included sponges if necessary to prevent media escape.

   • Plug in the pump and adjust the flow rate as needed.

2. Maintenance:

   • Regularly inspect the media for clogging or depletion.

   • Clean the reactor chamber and sponges periodically to maintain optimal performance.

   • Replace filter media according to the manufacturer's recommendations.

Benefits:

• Enhanced Filtration: Improves water clarity and quality by efficiently utilizing various filter media.

• Compact Design: Ideal for aquariums with limited space, fitting easily into most sumps or display tanks.

• Versatile Media Use: Compatible with a wide range of filtration media to address specific water quality concerns.

• Easy Monitoring: Transparent chamber allows for quick assessment of media condition and flow dynamics.

What's in the Box:

• 1x Bubble Magus Mini 80 WP Reactor Body

• 1x WP600 Pump

• 2x Sponge Inserts

• 1x Set of Inlet/Outlet Barb Fittings

• 1x User Manual

Storage Instructions:

When not in use, clean and dry all components thoroughly. Store in a cool, dry place away from direct sunlight to prevent material degradation.
